building a scalable chat application in c++ Using async io

20 Apr, 2025

📜 Project Overview

chatRoomCpp is a simple yet powerful chat room application implemented in C++, leveraging the Boost.Asio library for asynchronous network communication and threading for managing concurrent client sessions.

What it can do:-

Handle multiple clients simultaneously
Enable non-blocking communication
Efficiently manage memory and concurrency

🌟 Key Features

Asynchronous Communication: Non-blocking I/O with Boost.Asio.
Multi-threading: Separate threads to manage IO and user input.
Room Management: Centralized management of participants.
Message Handling: Efficient encoding and decoding of messages.

🏛️ Architecture Overview

The project is structured around a few key classes:

Component	Responsibility
Session	Represents a client session. Manages socket communication.
Room	Manages multiple client sessions. Broadcasts messages.
Message	Handles encoding/decoding of chat messages.
Server	Accepts incoming client connections.
Client	Connects to server, handles user input/output.

Each client connects to the server, joins a room, and can send and receive broadcasted messages asynchronously.

🔥 Some Functionalities Explained

1. Asynchronous I/O

Boost.Asio's async_read and async_write functions enable non-blocking reads and writes over sockets.
Operations are initiated but completed later, triggering a completion handler (callback).
Server continues handling other clients while one client’s I/O is pending.

Example Principle:

boost::asio::async_read(socket, buffer, completion_handler);
boost::asio::async_write(socket, buffer, completion_handler);

2. TCP Sockets

A TCP socket represents a single network connection between server and client.
Server listens on a TCP port → accepts new sockets for incoming connections.
Client connects to server socket.
Communication happens by reading/writing raw bytes through the socket.

Example Principle:

boost::asio::ip::tcp::acceptor acceptor(io_context, tcp::endpoint(tcp::v4(), port));
acceptor.async_accept(new_socket, accept_handler);

3. Threading Model

Server runs the io_context.run() loop on the main thread.
Client spawns a dedicated thread for handling user input while I/O operations are managed asynchronously on another thread.

4. Message Management

Each message includes a header and a body.
Encoding/decoding ensures proper message framing during TCP communication (since TCP is a continuous stream).

🧠 In-Depth: Boost.Asio Concepts Used

Boost.Asio Concept	Usage
`async_read_until()`	Read data asynchronously until a delimiter or length is reached.
`async_write()`	Write buffers asynchronously.
`io_context.post()`	Post functions to run in the I/O context's event loop.
Completion Handlers	Custom callbacks that execute after I/O operations complete.

Important Practice:

Always use shared_from_this() inside handlers to extend session object's lifetime during async operations.

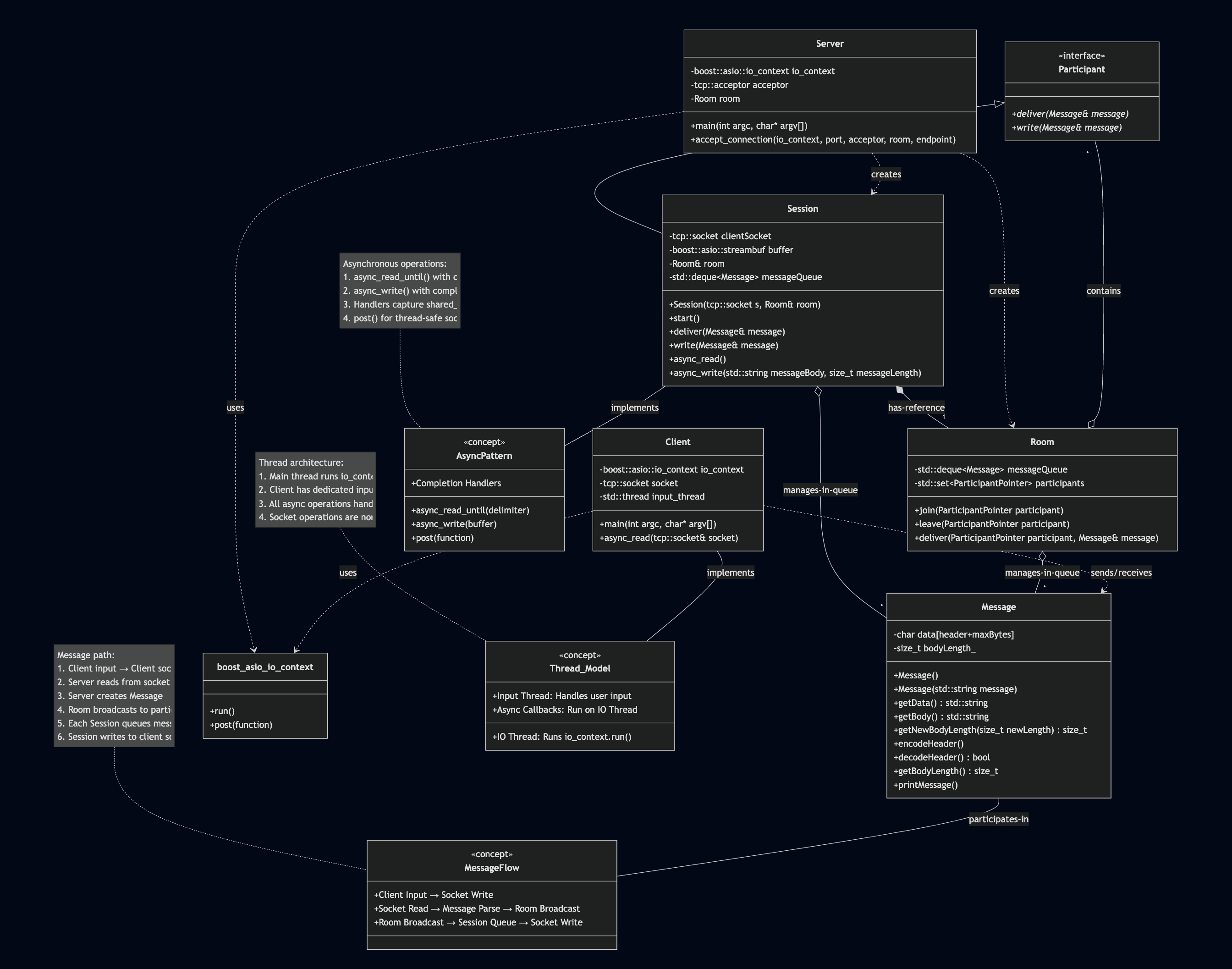

📐 Low-Level Design (LLD)

LLD:-

chatroom lld

🔥 Message Flow Explained

1. Client takes user input (e.g., a chat message).
2. Client asynchronously writes to socket.
3. Server reads data from socket asynchronously.
4. Server parses the incoming data into a Message object.
5. Server uses Room to broadcast Message to all Sessions.
6. Each Session queues the Message and asynchronously writes it to the respective client's socket.

🛠️ How to Build and Run

Clone the repository:

git clone https://github.com/singhdevhub-lovepreet/chatRoomCpp.git
cd chatRoomCpp

Build the project:
```
make
```
Start the server:
```
./chatApp <port>
```
Start the client (in separate terminal):
```
./clientApp <port>
```

🧩 Advanced Coding Practices Highlighted

Lifetime Safety with std::enable_shared_from_this:
- Ensures that async operations keep the Session object alive safely.
Efficient Message Encoding:
- First 4 bytes represent message size, followed by the actual message.
Proper Socket Management:
- Clean shutdowns of sockets when client disconnects.
Thread-Safe Queue Handling:
- Message queues are carefully managed per Session to avoid race conditions.
Scalable Server Design:
- Easy to scale further by adding multiple I/O threads or load balancing connections.

✨ Conclusion

The chatRoomCpp project brilliantly showcases how to design an asynchronous, multithreaded, scalable TCP server in modern C++.
If you're diving into network programming, real-time systems, or low-level system design, studying and extending this project will level up your engineering skills.

📖 Check out the full code here: chatRoomCpp GitHub Repository
